Flat Electrode PairM 6-Bi 200
Ref.Nr. 31003702
Flat electrodes for resistance-based moisture measurement in screed or insulation materials
M 6-Bi 200
Have questions?Description

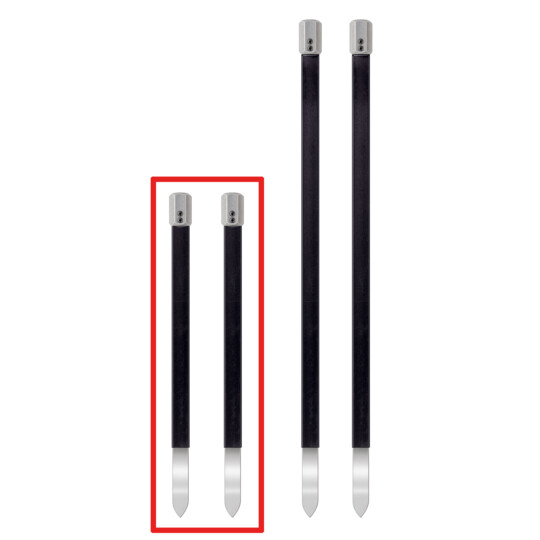

The M 6-Bi 200 flat electrode pair is used for resistance-based moisture measurement in screed or insulating materials. Their special shape makes it possible to measure in edge and floating joints.
Usecases
Measuring ranges
Structural Moisture
The electrode pair can be used with all hydromettes based on the resistance measurement method.
Resistance-based measuring
Measuring ranges
min.0 to max.87 digits
min.0.1 to max.60 wt.-%
min.0.1 to max.12 CM-%
The actual measuring range depends on the connected measuring instrument.
Show compatible measuring instrumentsSpecifications
- The insulation on the stem prevents surface moisture from skewing the measuring result
| Length | 0.01 m0.033 ft (0.01 m) |
| Width | 0.001 m0.003 ft (0.001 m) |
| Height | 0.2 m0.656 ft (0.2 m) |
Carrier SystemNeeds one of these carrier systems
6 Measuring instruments compatible
Compatible instrumentsCan be used with these measuring instruments
4 to 100 % (dry mass)
0 to 200 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0.3 to 25 wt.-%
0.3 to 12 CM-%
0 to 100 % R.H.
±1.8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0.3 (0 to 60 °C) Sensor Accuracy
-40 to 380 °C
±0.5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
