Wood Moisture - supported by measuring instrument, but no respective accessories are included in this packageWood Moisture - supported by measuring instrument, but no respective accessories are included in this package
Structural Moisture
Air Humidity - not supported
Air Temperature - not supported
Surface Temperature - supported by measuring instrument, but no respective accessories are included in this packageSurface Temperature - supported by measuring instrument, but no respective accessories are included in this package
Material Temperature - not supported
Air Speed - not supported

Package
HB 30 - Set 2

Ref.Nr. 30002512
DescriptionUsecases
DescriptionUsecases
HB 30 - Set 2

Package contents

Measuring ranges

Display by clicking on the electrode or measuring device next to the application area.
Included devices & accessories
Wood Moisture - supported by measuring instrument, but no respective accessories are included in this packageWood Moisture - supported by measuring instrument, but no respective accessories are included in this package
Available accessories for Wood Moisture
In combination with the included HB 30
Resistance
4 to 30 % (dry mass)
11 Measuring instruments compatible
M 18
12 Measuring instruments compatible2 Usecases
M 20
Carrier system: M 20
12 Measuring instruments compatible2 Usecases
M 20-OF 15
Carrier system: M 20
11 Measuring instruments compatible
M 20-DS 16
Carrier system: M 20
11 Measuring instruments compatible
M 20-HW 200
Carrier system: M 20
11 Measuring instruments compatible
M 20-HW 300
Structural Moisture

In combination with the included HB 30
Resistance
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
Air Humidity - not supported
Air Temperature - not supported
Surface Temperature - supported by measuring instrument, but no respective accessories are included in this packageSurface Temperature - supported by measuring instrument, but no respective accessories are included in this package
Available accessories for Surface Temperature
In combination with the included HB 30
Infrared
-20 to 199.9 °C
4 Measuring instruments compatible
IR 40 EL
Material Temperature - not supported
Air Speed - not supported

The meaning of the icons

A filled icon = Measuring task is supported by the instrument unit - the respective accessories are included in the package.

A half filled icon = Measuring task is supported by the instrument unit - but this package does not include the respective accessories. This means you can expand the scope of use cases at any time by purchasing additional electrodes & probes.

A transparent icon = Measuring task is not supported by the instrument unit.

Description

This set includes the M 6 stick-in probe pair for resistance-based moisture measurement of various hard and soft building materials. It also serves as a carrier system for many other probe pairs.

The Hydromette HB 30 is a multi-purpose measuring device for detecting building moisture, wood moisture and temperature. It is therefore (particularly) suitable for painters, drywall installers, parquet and panel layers, construction companies, contractors, architects and water damage restoration companies.

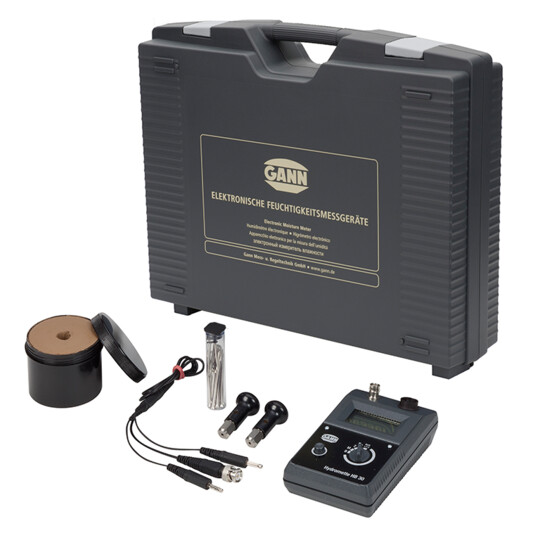

The probe and the measuring device are supplied in a convenient carrying case, together with the measuring cable required for operation.
