OT 100 BL
Have questions?Description

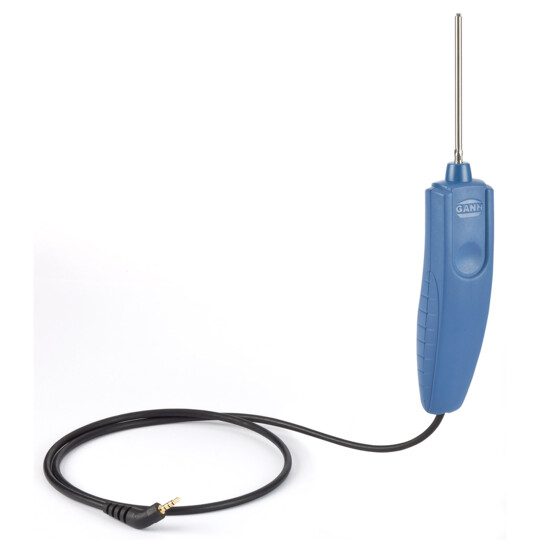

The OT 100 BL has a suspended sensor tip with thermal separation and resulting optimised measured value collection, e.g. on wall surfaces.
Measuring ranges
Pt100
Measuring ranges
-50 to 250 °C
Specifications
- Pt100 sensor in 4-wire technology
- Sensor pipe: 110 mm (Length), 5 mm (Ø)
- Optional: thermally conductive paste
Compatible instrumentsCan be used with these measuring instruments
4 to 100 % (dry mass)
0 to 200 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0.3 to 25 wt.-%
0.3 to 12 CM-%
0 to 100 % R.H.
±1.8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0.3 (0 to 60 °C) Sensor Accuracy
-40 to 380 °C
±0.5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
