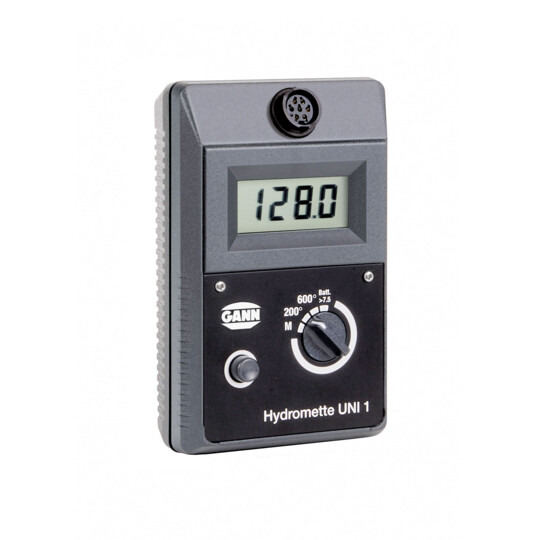

HydrometteUNI 1
Multi-purpose measuring device for structural moisture, humidity and temperature
Description
The UNI 1 unit is an electronic multi-purpose measuring device for structural moisture, humidity and temperature.
In the case ofbuilding materials (e.g. screeds, mortar, renders, concrete, brick and insulating materials) the capacitive measuring method is used. With this method / operating mode, a non-destructive testing of affected areas is possible.
For climate measurements (air humidity and temperature), our high-quality RF-T and RH-T series electrodes can be connected.
In addition to the air temperature, temperatures of surfaces (using Pt100 or infrared sensors) and materials (also using Pt100 sensors) can be measured, too.
The device ist particulary suited for insurance companies, air-conditioning engineers and water damage restoration companies. It is the ideal complement to an existing wood moisture meter.
Measuring ranges
- sensor pipe: 100 mm length
- up to 250 °C
- sensor pipe: 120 mm length
- up to 300 °C
- Connection cable: 10 m length
- up to 120 °C
- Connection cable: 2 m length
- up to 120 °C
- Connection cable: 20 m length
- up to 120 °C
- Connection cable: 30 m length
- up to 120 °C
- Connection cable: 5 m length
- up to 120 °C
- sensor pipe: 230 mm length
- up to 350 °C
- sensor pipe: 480 mm length
- up to 350 °C
- sensor pipe: 480 mm length
- up to 600 °C
- sensor pipe: 600 mm length
- up to 600 °C
Specifications
- Handy moisture measuring meter for fast single and series measurements
- Precise measurement of air, surface and material temperature by Pt100 sensors in four-wire sensing
- The use of an infrared probe enables non-contact measurement of surface temperatures
- Power supply: a 9-volt battery is included
| Length | 0.14 m0.459 ft (0.14 m) |
| Width | 0.09 m0.295 ft (0.09 m) |
| Height | 0.05 m0.164 ft (0.05 m) |
| Weight | 0.23 kg0.507 lb (0.23 kg) |
Packages
The meaning of the icons
A filled icon = Measuring task is supported by the instrument unit - the respective accessories are included in the package.
A half filled icon = Measuring task is supported by the instrument unit - but this package does not include the respective accessories. This means you can expand the scope of use cases at any time by purchasing additional electrodes & probes.
A transparent icon = Measuring task is not supported by the instrument unit.
