Wood Moisture
Structural Moisture

Hydromette
BL Compact

StandaloneCombiRef.Nr. 30012010

Moisture meter for various types of wood as well as for soft building materials

Description
Description
BL Compact

Description

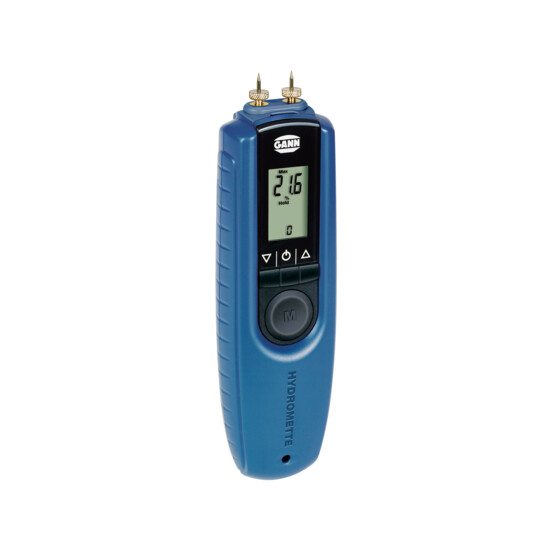

The BL Compact unit is an electronic moisture meter for various types of wood as well as for soft building materials.

The sensor pins are driven into the material to be measured and allow the measurement of moisture in sawn timber, chipboards, veneers and wood fibre materials up to 25 mm in thickness as well as of regular gypsum and mixed plaster.
After measuring, the construction material specific minimum and maximum values can be retrieved.

Measuring ranges

Resistance-based measuring
Resistance-based measuring
Measuring ranges
5.5 to 26 % (dry mass)
Resistance-based measuring
Resistance-based measuring
Measuring ranges
0.5 to 3.5 wt.-%
Insulating material
5.0 to 30 wt.-%
Suitable electrodes & probes
2 Measuring instruments compatible
Compact Bi 175
2 Measuring instruments compatible
Compact HW 175

Specifications

  • Handy pocket-sized moisture measuring meter for fast single and series measurements
  • Direct readout of wood and structural moisture in weight-% on the LCD, resolution: 0.1 %
  • 4-level wood species correction for more than 300 types of wood
  • Characteristic curves for 3 types of building materials and 2 types of insulating materials
  • Min, Max and Hold functions for measured values
  • Power supply: a 9-volt battery is included
Length0.175 m0.574 ft (0.175 m)
Width0.05 m0.164 ft (0.05 m)
Height0.03 m0.098 ft (0.03 m)
Weight0.16 kg0.353 lb (0.16 kg)

Packages

The meaning of the icons

A filled icon = Measuring task is supported by the instrument unit - the respective accessories are included in the package.

A half filled icon = Measuring task is supported by the instrument unit - but this package does not include the respective accessories. This means you can expand the scope of use cases at any time by purchasing additional electrodes & probes.

A transparent icon = Measuring task is not supported by the instrument unit.
