Wood Moisture - not supported
Structural Moisture
Air Humidity
Air Temperature
Surface Temperature - supported by measuring instrument, but no respective accessories are included in this packageSurface Temperature - supported by measuring instrument, but no respective accessories are included in this package
Material Temperature - supported by measuring instrument, but no respective accessories are included in this packageMaterial Temperature - supported by measuring instrument, but no respective accessories are included in this package
Air Speed - not supported

Package
UNI 2 - Set 3

Ref.Nr. 30002552
DescriptionUsecases
DescriptionUsecases
UNI 2 - Set 3

Package contents

Measuring ranges

Display by clicking on the electrode or measuring device next to the application area.
Included devices & accessories
Wood Moisture - not supported
Structural Moisture

Capacitive
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%

In combination with the included UNI 2
Resistance
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
Air Humidity

Capacitive
0 to 100 % R.H.
±1.8 (10 to 90 % R.H.) Sensor Accuracy
Air Temperature

Band Gap
-20 to 80 °C
±0.5 (-10 to 40 °C) Sensor Accuracy
Surface Temperature - supported by measuring instrument, but no respective accessories are included in this packageSurface Temperature - supported by measuring instrument, but no respective accessories are included in this package
Available accessories for Surface Temperature
In combination with the included UNI 2
Pt100
-50 to 600 °C
4 Measuring instruments compatible
OT 100
3 Measuring instruments compatible
OTW 480
4 Measuring instruments compatible
OTW 90
Infrared
-20 to 199.9 °C
4 Measuring instruments compatible
IR 40 EL
Material Temperature - supported by measuring instrument, but no respective accessories are included in this packageMaterial Temperature - supported by measuring instrument, but no respective accessories are included in this package
Available accessories for Material Temperature
In combination with the included UNI 2
Pt100
-50 to 600 °C
4 Measuring instruments compatible
ET 10
  • sensor pipe: 100 mm length
  • up to 250 °C
4 Measuring instruments compatible
ET 50
  • sensor pipe: 120 mm length
  • up to 300 °C
4 Measuring instruments compatible
FT 10
  • Connection cable: 10 m length
  • up to 120 °C
4 Measuring instruments compatible
FT 2
  • Connection cable: 2 m length
  • up to 120 °C
4 Measuring instruments compatible
FT 20
  • Connection cable: 20 m length
  • up to 120 °C
4 Measuring instruments compatible
FT 30
  • Connection cable: 30 m length
  • up to 120 °C
4 Measuring instruments compatible
FT 5
  • Connection cable: 5 m length
  • up to 120 °C
4 Measuring instruments compatible
TT 30
  • sensor pipe: 230 mm length
  • up to 350 °C
4 Measuring instruments compatible
TT 40
  • sensor pipe: 480 mm length
  • up to 350 °C
3 Measuring instruments compatible
TT 480
  • sensor pipe: 480 mm length
  • up to 600 °C
3 Measuring instruments compatible
TT 600
  • sensor pipe: 600 mm length
  • up to 600 °C
Air Speed - not supported

The meaning of the icons

A filled icon = Measuring task is supported by the instrument unit - the respective accessories are included in the package.

A half filled icon = Measuring task is supported by the instrument unit - but this package does not include the respective accessories. This means you can expand the scope of use cases at any time by purchasing additional electrodes & probes.

A transparent icon = Measuring task is not supported by the instrument unit.

Description

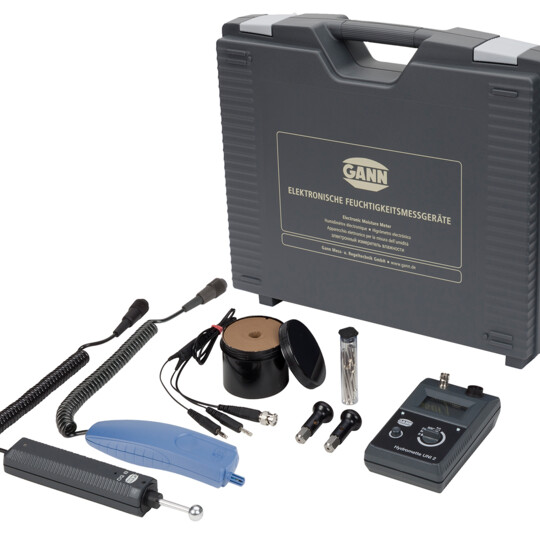

This set includes the M 6 stick-in probe pair for resistance-based moisture measurement of various hard and soft building materials. It also serves as a carrier system for many other probe pairs. Also included are the B 50 capacitive building moisture probe for non-destructive measurement in building materials as well as the RH-T 37 EL 160 climate probe for air humidity and air temperature measurements (also in pre-drilled holes).

The Hydromette UNI 2 is a multi-purpose device for measuring building moisture, air humidity and temperature. In comparison to the UNI 1, it offers extended possibilities for building moisture measurement and is therefore (particularly) suitable for painters, interior fitters, parquet installers, construction drying companies, property developers, architects as well as residential construction companies.

The probes and the measuring device are supplied in a convenient carrying case, together with the measuring cable required for operation.
