Humidity ProbeRH-T 37 BL 320
Description

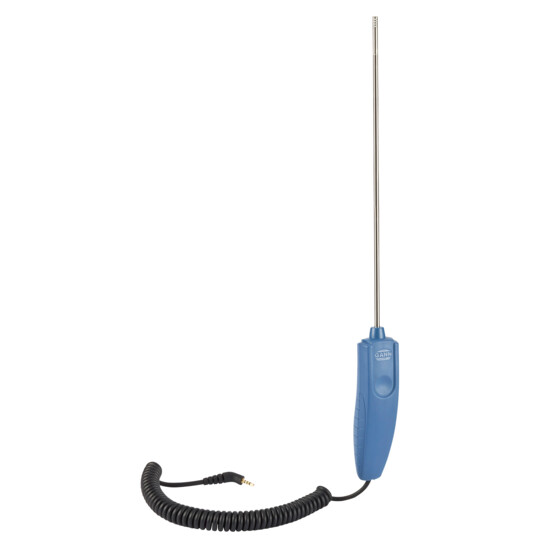

The RH-T 37 BL 320 is a probe for humidity und air temperature measurements - particularly suited for applications in bulk materials and solid materials (e.g. brickwork or screeds).
Its range of applications includes, among others, humidity analyses, damage survey, monitoring the drying of buildings, and checking whether floor or wall covers may be laid.
The probe pipe has a diameter of 5.5 mm which enables measurements in joints without having to accept damage to wall or floor tiles.
A Hydromette unit can be used to measure air humidity in a drill hole and sorption isotherms can be used to determine the moisture content of certain set building materials or whether coatings can be applied to these building materials.
In order to obtain very precise measurements the device should have an adaptation period of approx. 10 - 15 minutes to compensate temperature differences between the sensor and the surrounding climate.
Usecases
Measuring room temperature and humidity (also in the drill hole for KRL measurements)
Measuring ranges
Specifications
- Sensor pipe: 320 mm (length) and 5,5 mm (diameter)
- Diaphragm filter for measuring in air containing dust, pollution, or high air flow velocity is standard equipment
Compatible instrumentsCan be used with these measuring instruments
Downloads
Manuals
- RH-T_37_BL_V2.4_DE846 KB
- RH-T_37_BL_V2.4_EN846 KB
- RH-T_37_BL_V2.4_IT752 KB
